Blast Vibration Monitor-Smart
Geophone Sensor IoT

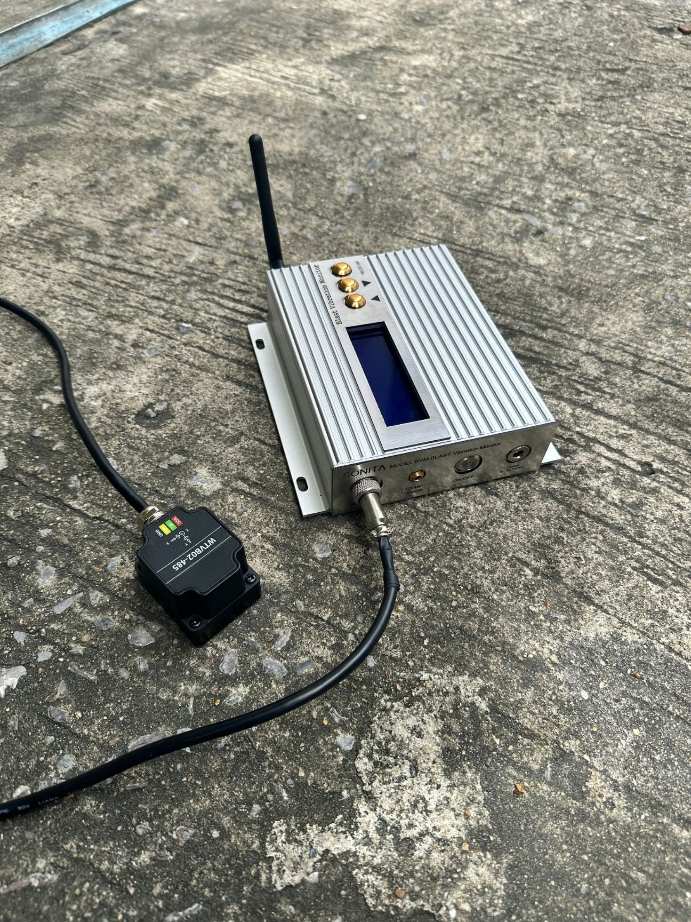

The SONITA BVM blast vibration monitor has a monitor incorporates three-key and on-board LCD, with and easy setup and operation. In addition, the SONITA BVM auto record stop mode automatically sets the record length, helping ensure that you record the entire event. It also comes with an integrated monitoring log, for compliance with many local and regional regulatory standards.
Specifications
| VIBRATION METER | |
|---|---|
| Standards | ISEE (2022), DIN 45669-1 (2010) |
| Certificate | Embedded calibration certificate in non-volatile memory |
| Sensor technology | Analogue geophone |
| Sampling frequency | 2.756 kHz |
| Resolution | 32-bit floating point |
| Axis | X (Trans.), Y (Long.), Z (Vert.), Vector-Sum |
| Measured metrics | RMS, Peak, Time-signal and 1/3 octave spectrum (0.5–400 Hz); DIN 45669 KBFT weighted velocity (0.125 s Expo. RMS) (model DIN only) |
| Metrics interval | 93 ms |
| Metrics buffer length | 10 s |
| SELF-TEST | |
| Method | Electromechanical force injected on sensor |
| Results | Time signal and Pass/Fail based on factory calibrated values in sensor memory |
| COMMUNICATION | |
| Protocol | RS-485 Half-Duplex, 3 Mbps |
| Connector | M12, 4-conductor, female-male, 10 m |
| ENVIRONMENTAL | |
| Operating temperature | -40 °C to 50 °C |
| Storage temperature | -50 °C to 70 °C |
| Certified to | IP68 |
| POWER | |
| Power | 0.4 W |
| Operating voltage | 5 V |
