Design Acoustic Room

Design of noise test rooms and acoustic enclosures from the customer's requirement: room size, target background noise, wall and floor construction, and simulated sound insulation before construction.

Every enclosure starts from the customer's requirement: the size of each room, the background noise needed inside for testing, and the noise allowed outside. SP SONIC then designs the complete room, including the wall and floor layers, doors, windows, ventilation and the layout on the production line. Before anything is built, the sound insulation of the proposed wall is calculated and simulated (AFMG SoundFlow), so the design can be compared with the existing room and the customer can see the expected improvement. Materials are selected for acoustic performance, fire safety and durability: perforated steel panels with powder coating, glass wool and gypsum board. What you receive: a design package with requirements, 3D drawings and plans, wall and floor sections, material specifications and the predicted transmission loss, followed by construction and measurement of the finished room.

Key features

Design from the customer's room sizes and noise targets

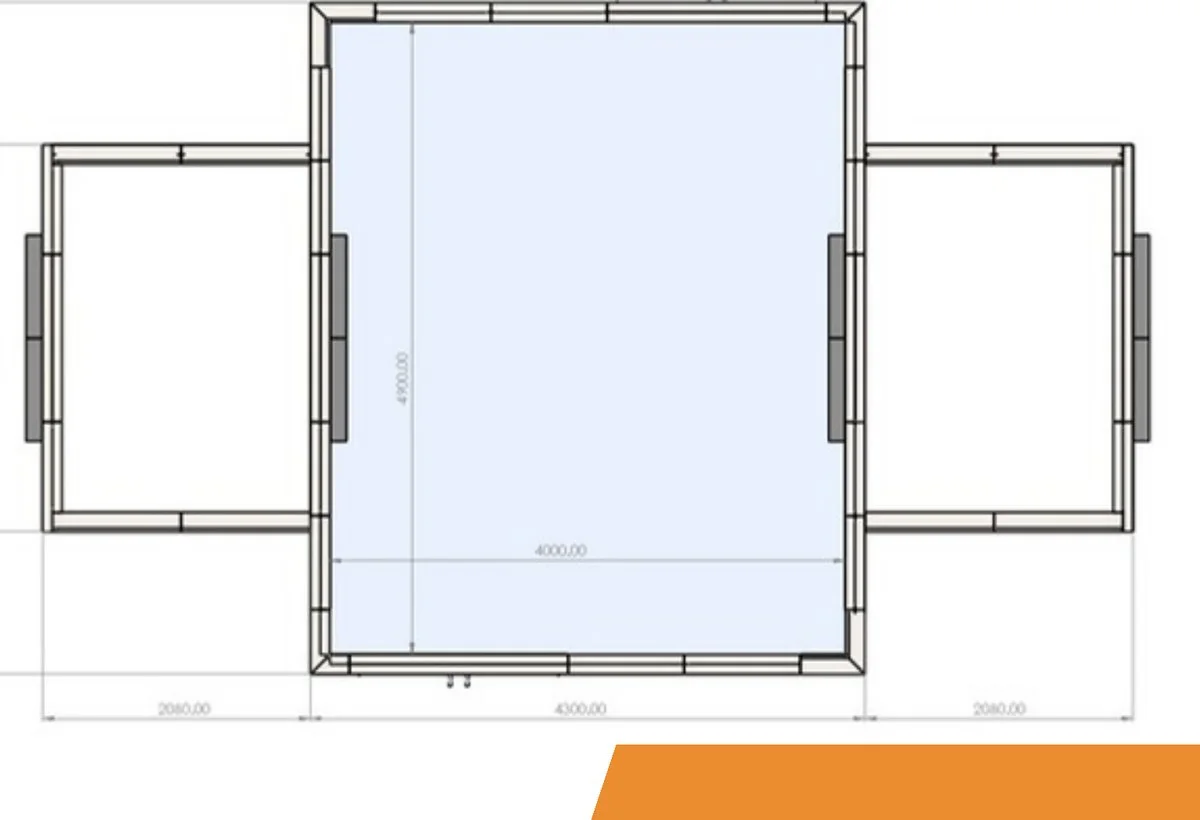

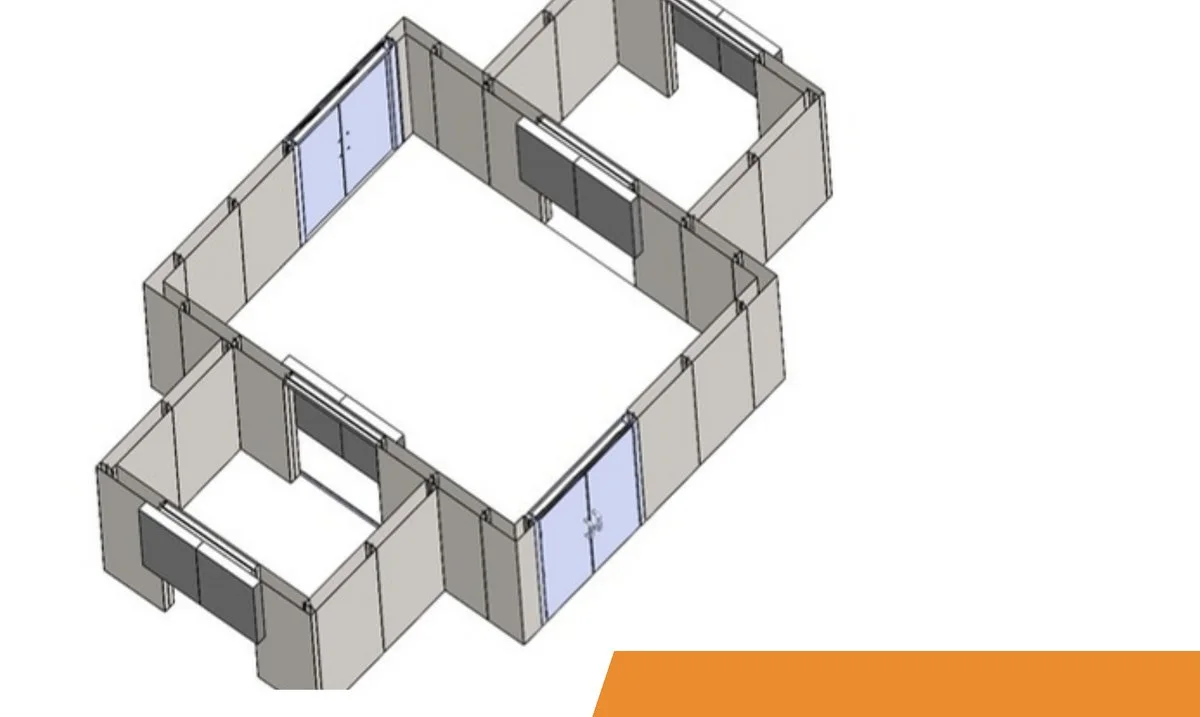

3D drawings, plans and wall/floor sections

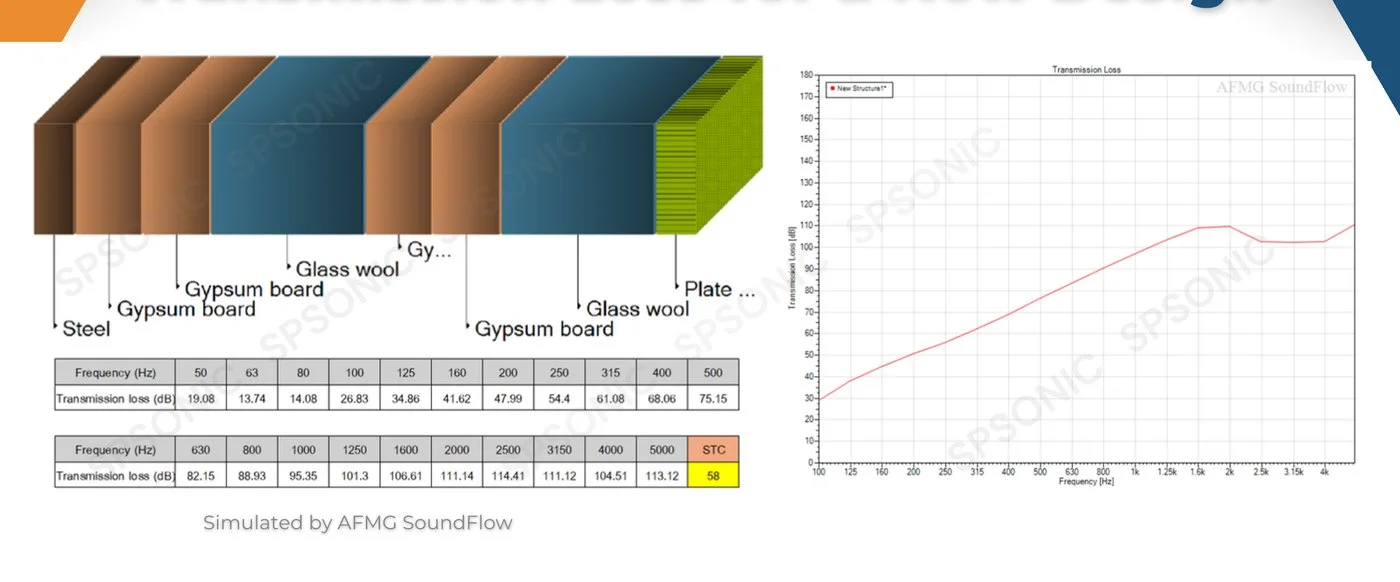

Transmission loss simulated before construction (AFMG SoundFlow)
Comparison of new and existing designs

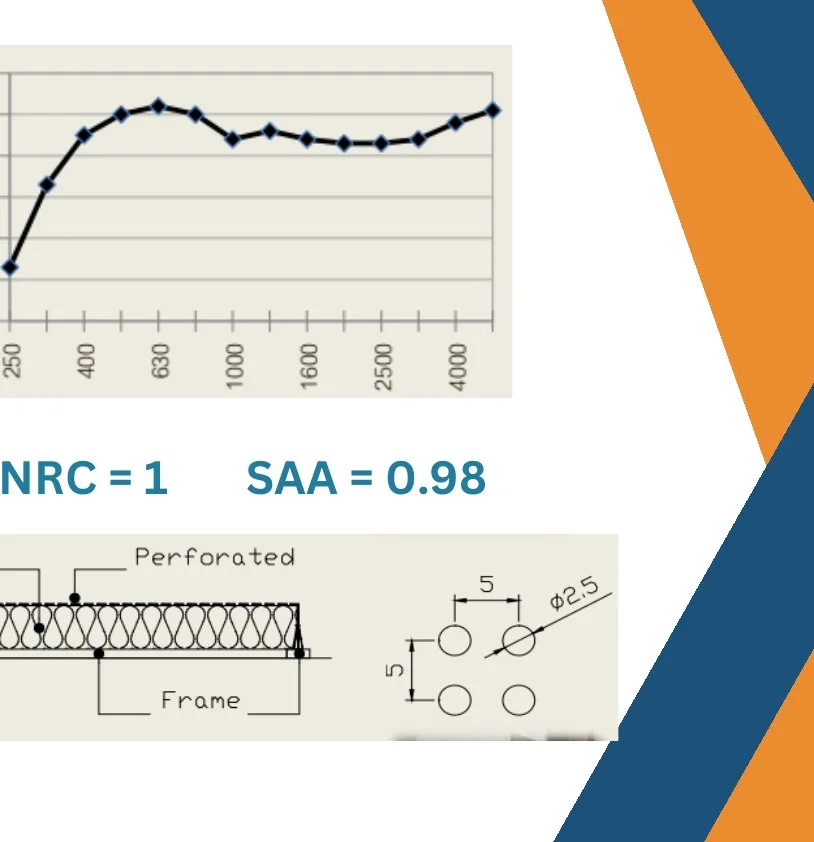

Perforated absorptive inner panels (NRC 1.0, SAA 0.98)
Fire-safe, moisture- and mould-resistant materials
Demolition and replacement of old rooms when required
Measurement of the finished room

Specifications

Wall thickness	150 mm

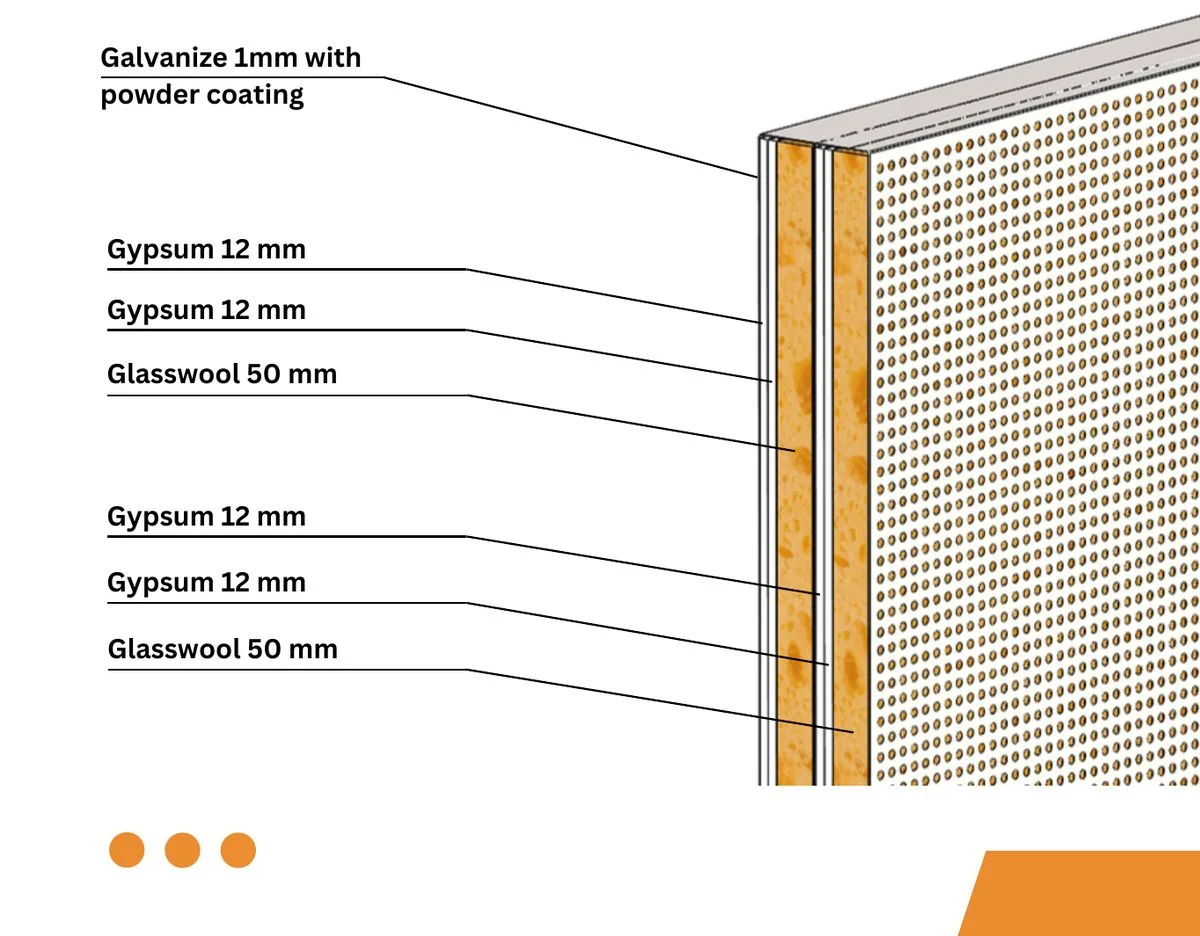

Wall layers	galvanised steel 1 mm, gypsum 12 mm ×4, glass wool 50 mm ×2, perforated steel 1 mm (powder coated)

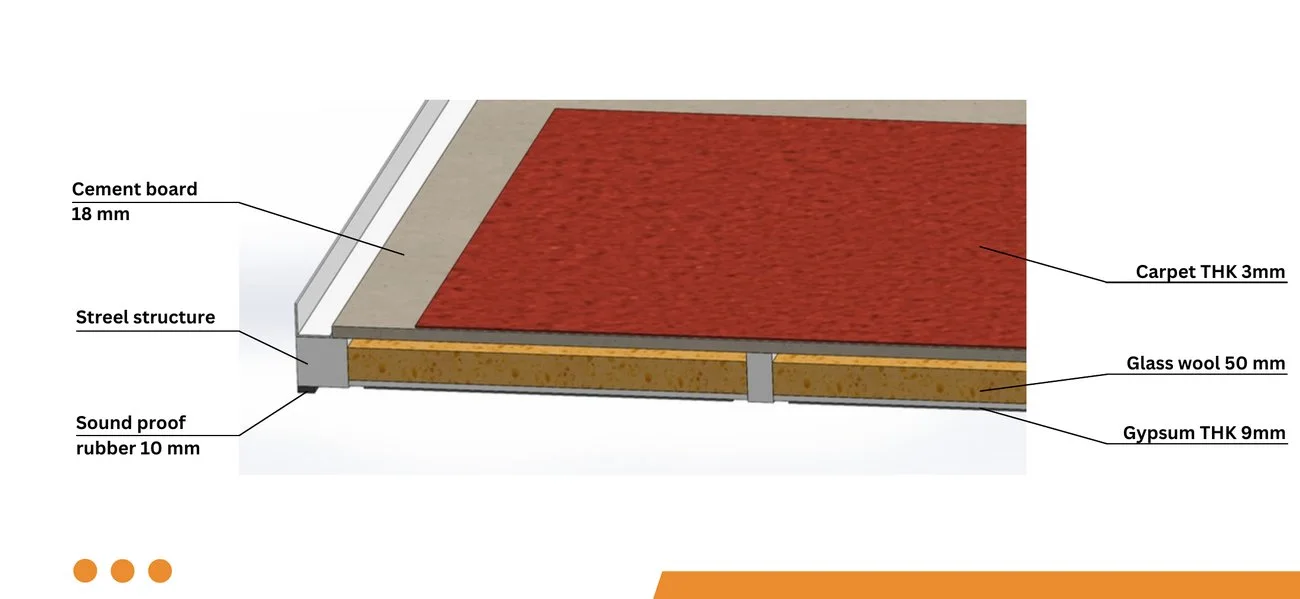

Floor	cement board 18 mm, steel structure, soundproof rubber 10 mm, glass wool 50 mm, gypsum 9 mm, carpet 3 mm
Inner panel absorption	NRC 1.0, SAA 0.98
Glass wool	thermal conductivity 0.032 W/m·K (ASTM C518), surface burning ASTM E84
Gypsum	TIS 219-2552, ASTM C1396, BS 1230
Simulation software	AFMG SoundFlow
