Precision Voltage Output Accelerometers 100 Series



Industrial Environment Measurement Model

Dual Case Design with Removable Industrial Connector
  • Sensitivities: 10 mV/ ms-2 to 30 mv/ms -2
  • Dual case design, high frequency measurement (10%) up to 10 kHz (600000rpm)
  • Choices of two matting connectors, straight and 90 degree

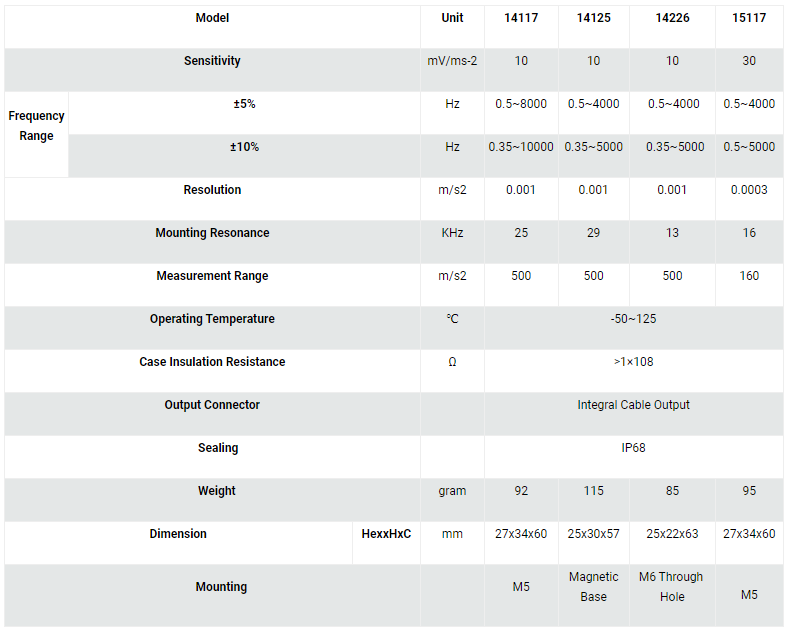

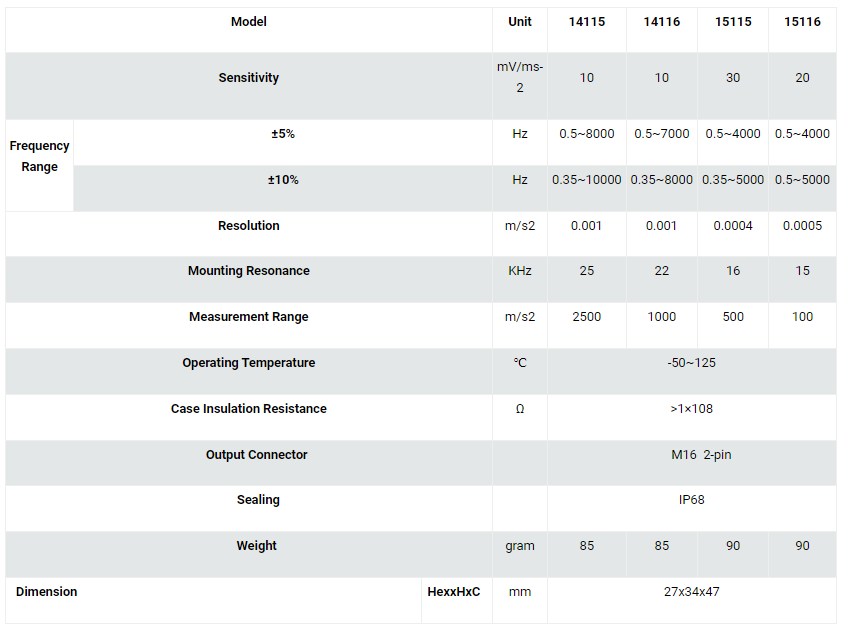

    • Specifications


    Dual Case Design with Integral Cable
  • Sensitivities: 10 mV/ ms-2 to 30 mv/ms. -2
  • 3 mounting methods: regular M6 thread, through hole and magnetic mounting
  • Choices of top and side integral cable connection location
  • Metal jacket is available for cable protection

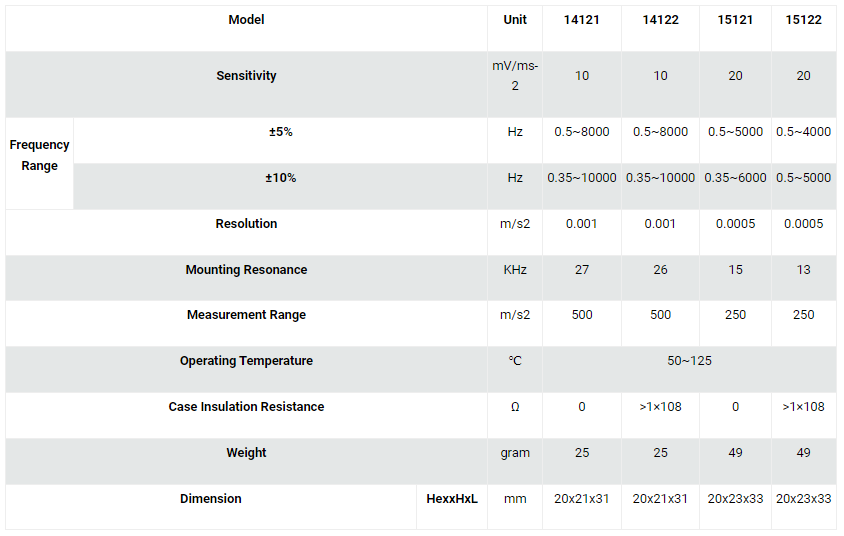

    • Specifications


    Single Case Integral Cable Design with Isolated Mounting Base
  • Sensitivities: 10 mV/ ms-2 and 20 mv/ms. -2
  • Choices of isolated and non-isolated mounting base
  • Integral harness with Φ3mm low noise cable
    •



    Specifications


    TNC Output Connector Model with Isolated Mounting Base
  • Sensitivities: 5 mV/ ms-2, 10 mV/ ms-2 and 20 mV/ ms-2
  • Choices of top and side output connector with 5mm co-axial cable.
    •



    Specifications
