Sound Intensity Imaging System
The adage “A picture is worth a thousand words” has never been truer in the field of acoustics. The translation of complex acoustical phenomena can be a hard task especially when it comes to informing non-technical clients. Wouldn’t it be easier just to take a picture? The answer is YES!
The I-Track System is a powerful tool for easy, fast and accurate sound imagery. The images are created by combining the acoustic data provided by a MEZZO Sound Intensity Probe with its position provided by a camera based tracking device in real-time. The result is a high definition sound image performed in a few minutes.
The I-Track System offers a complete solution to create sound imagery both in the field and in laboratory. Its compact system makes it easy to carry and fast to setup a measurement.
The I-Track System provides invaluable information in many fields of acoustics such as product manufacturing, consulting, and laboratory experiments.
Quick and Easy: YES! Compromise on Accuracy: NO!

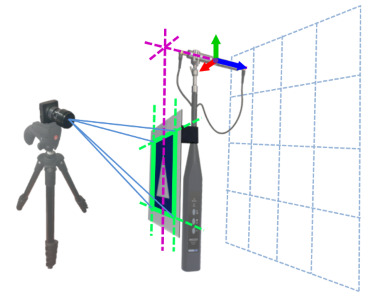

The I-Track System uses an optical tracking system to precisely locate the sound intensity probe in space.
While you scan the measurement surface, the probe position is tracked for each acoustic measurement interval (typically 10 times a second).
Every measurement point is drawn on the picture in real time creating the sound map on the screen as you scan the measurement surface.
The resulting pictures are not only great looking, but are also highly accurate. Sound intensity, pressure and PI index levels can be plotted for every frequency band as well as for global level. Correspondingly, the associated spectrum shows the spatial average of pressure, intensity, PI index (F3), P|I| index (F2), Extraneous sources index (F3-F2) and sound power.
The I-Track system offers proprietary phase mismatch compensation filters, class 0 digital filters and 64-bit computing offering the highest level of precision.
The I-Track system offers a high-quality, unrivaled, real-time sound imagery system at an unbeatable price.

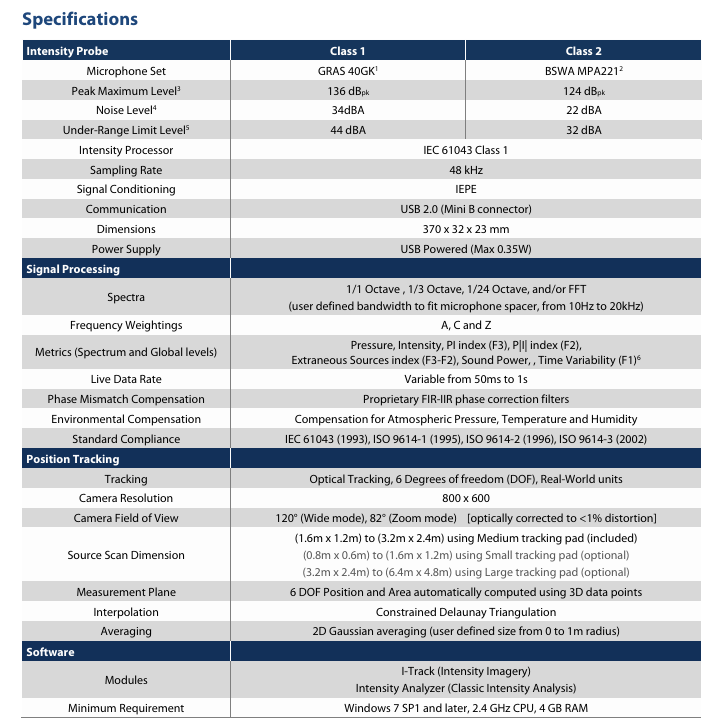

Tracking Cam
Software Module
with Tracking Pad
